freq2time shows error in graph

Home › Forums › Bug Reports › freq2time shows error in graph

Tagged:

Viewing 2 posts - 1 through 2 (of 2 total)
  • Author
    Posts
  • 20. August 2026 at 12:59 #9271
    el-spec_SB
    Participant

      uSimmics 5.9

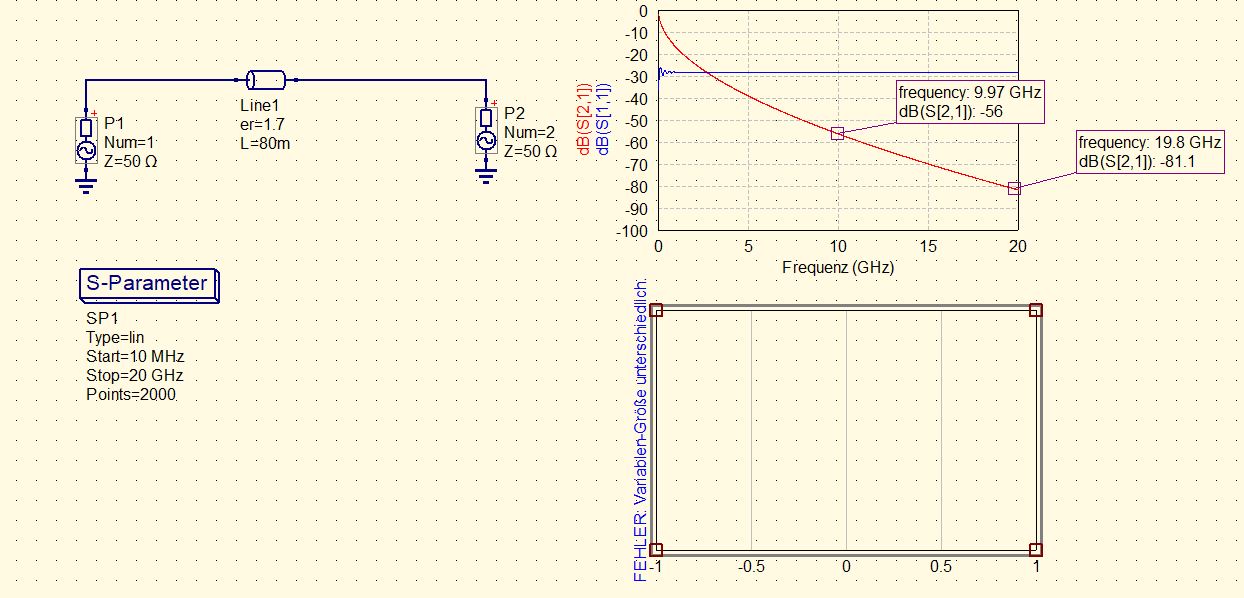

      I simulate a coax cable in the frequency range 10 MHz to 20 GHz with 10 MHz steps. The S-parameter looks good.

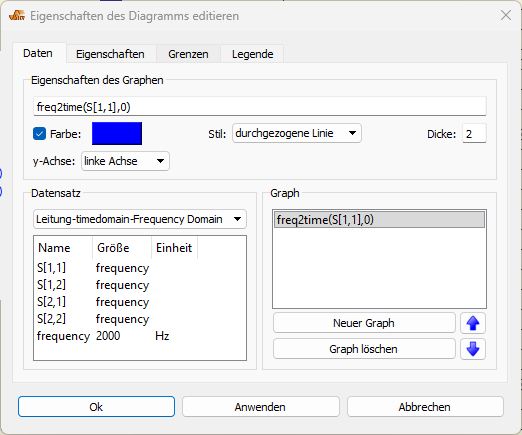

      If I plot the time domain signal according to the minimal description I get the error on the diagram.
      Have I done something wrong, or is this a bug?

      Attachments:

      1. Projekt_-Leitung_TD_FD.jpg

      2. Diagramms-editieren.jpg

      5. November 2026 at 14:29 #9299
      MarioK
      Participant

        Hi el-spec_SB,
        freq2time appears to require the DC point. If you start the sweep at zero Hz, it should work as intended.
