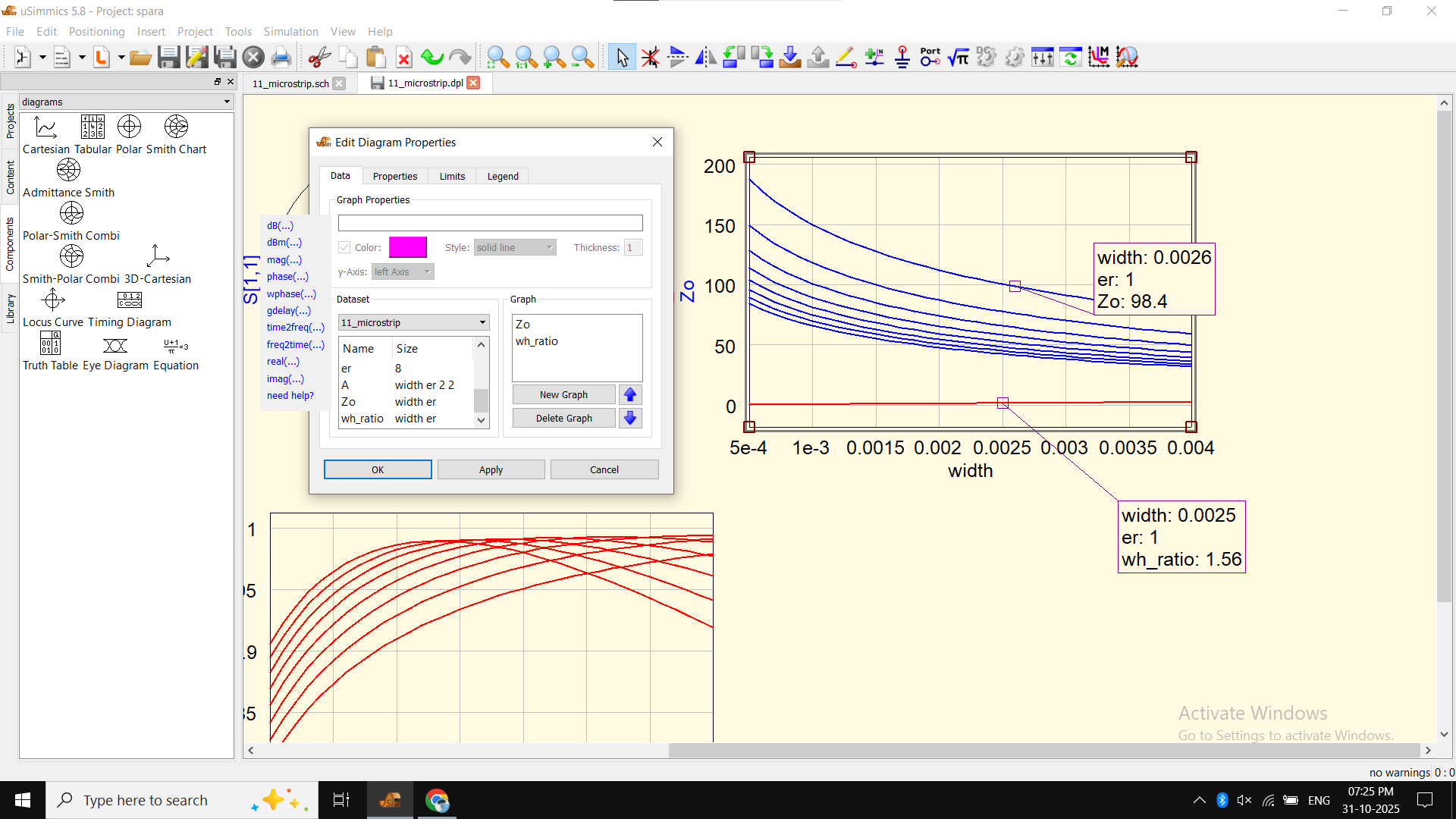

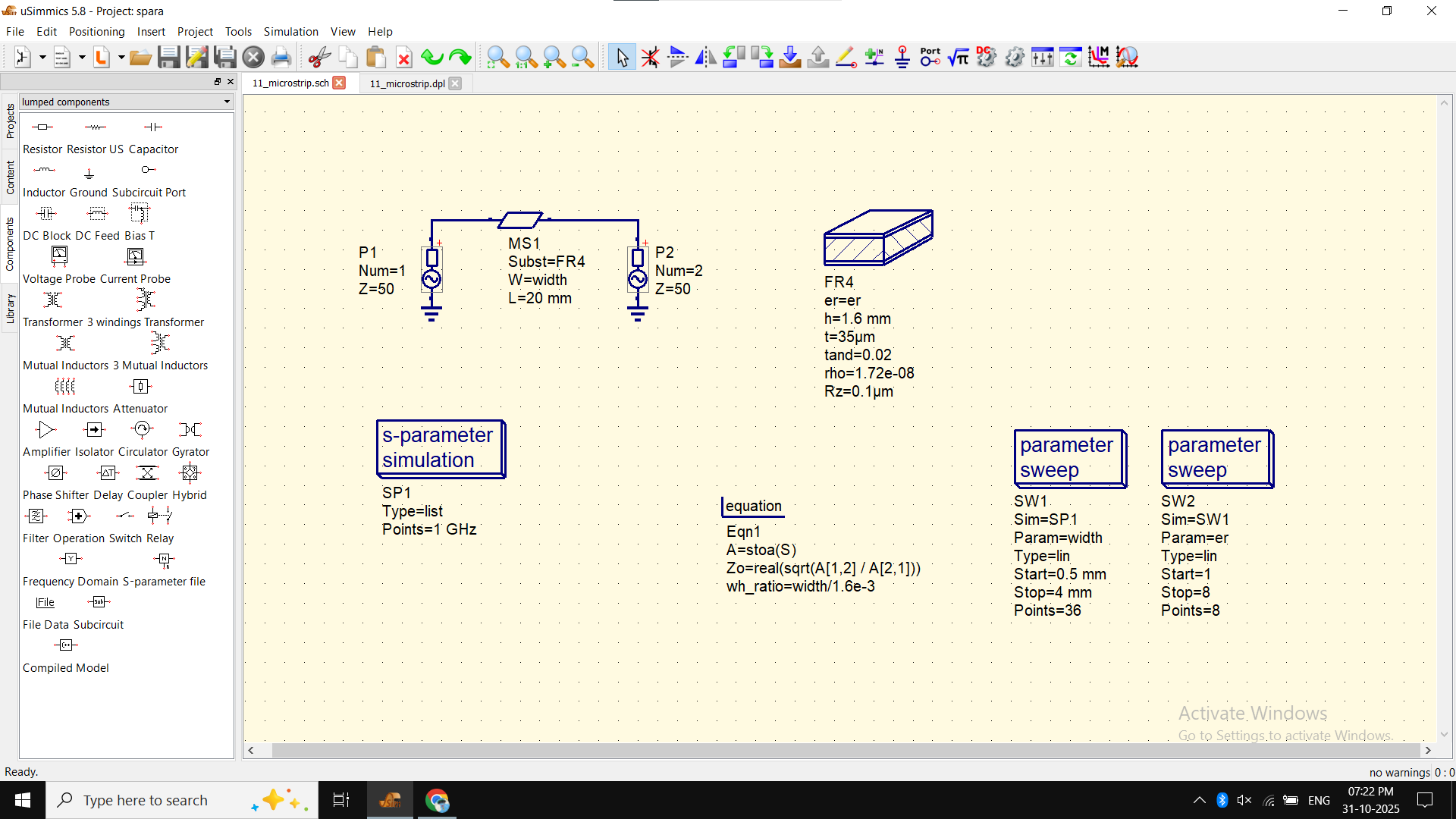

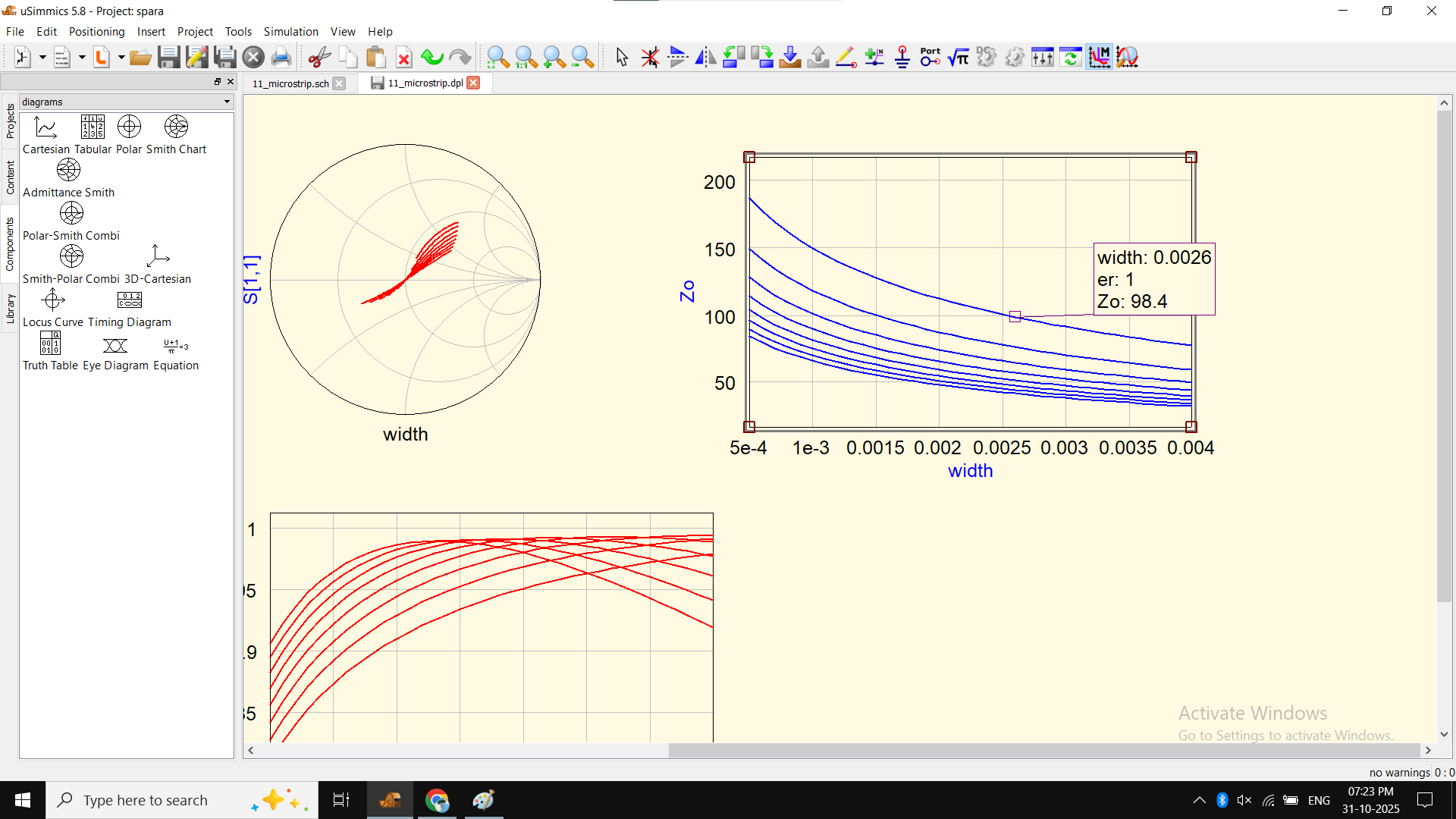

I’m working on the microstrip simulation and I’m stuck on the final plot. I am trying to plot Zo vs W/h .I am sweeping the width and calculating wh_ratio in an equation, but my graph’s X-axis stays as width and I can’t figure out how to change it to wh_ratio. When I am plotting Zo vs wh_ratio getting weird graph. I have attached the image for reference. Please help
