While looking at this application note from NXP, I realized that the ADS simulation shown there on p. 4 could be done by Qucs Studio, except for the taper. So, I think it would be a great idea if a taper (linear or exponential) is offered among the other transmission line elements.
Extending the component set is always nice. If somebody can provide the model equations for the microstrip taper, I will implement it.

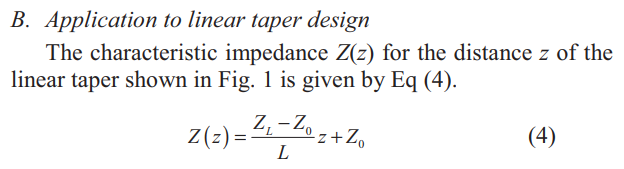

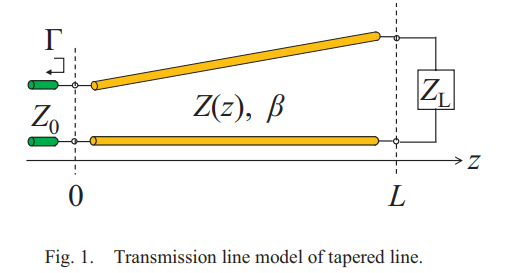

Found this paper on taper microstrips https://ieeexplore.ieee.org/stamp/stamp.jsp?tp=&arnumber=9331565 using fft to calculate S11. Not sure if this is that straightforward to implement but for Z its quite straight forward a linear model.
Let me know if you want to implement this or need the full pdf or contribution.
Tapers can be analyzed with the theory of small reflections, e.g. here on Libretexts. Pozar’s well-known book Microwave Engineering discusses tapered lines (section 5.8 in the Fourth Edition).
